GH2132 Monel K-500 Alloy31 Special Nickel-Based Alloy Stainless Steel Pipe

Product Categories
Jiangsu Shengyilu Metal Material Co., Ltd.
Contact Now

GH2132 Monel K-500 Alloy31 Special Nickel-Based Alloy Stainless Steel Pipe

Brand Name : SYL

Model Number : 0#, 45#, 35CRMO4, 30CrMo, Cr17Ni8, 15MnV, 15Mo3, Q195, ST42,

Certification : ISO

Place of Origin : China

MOQ : 5 Tons

Price : Negotiable

Payment Terms : T/T, Western Union, L/C, D/A, D/P

Supply Ability : 5000 Ton per month

Delivery Time : 7-15 Work days

Packaging Details : Standard seaworthy export packing or as customer demands

Application : Heat-Exchanger Tubes

Alloy Or Not : Is Alloy

Section Shape : Round

Special Pipe : API Pipe

Outer Diameter : 6 - 76 mm

Thickness : 1 - 10 mm

Standard : API, ASTM, GB, JIS, API 5L, ANSI A213-2001, ANSI A213M-2001,

Grade : 0#, 45#, 35CRMO4, 30CrMo, Cr17Ni8, 15MnV, 15Mo3, Q195, ST42,

Surface Treatment : black paint

Tolerance : ±1%

Processing Service : Bending, Welding, Cutting

Technique : Hot Rolled

Length : 5.8-12m

Surface : Black Painting

Contact Now

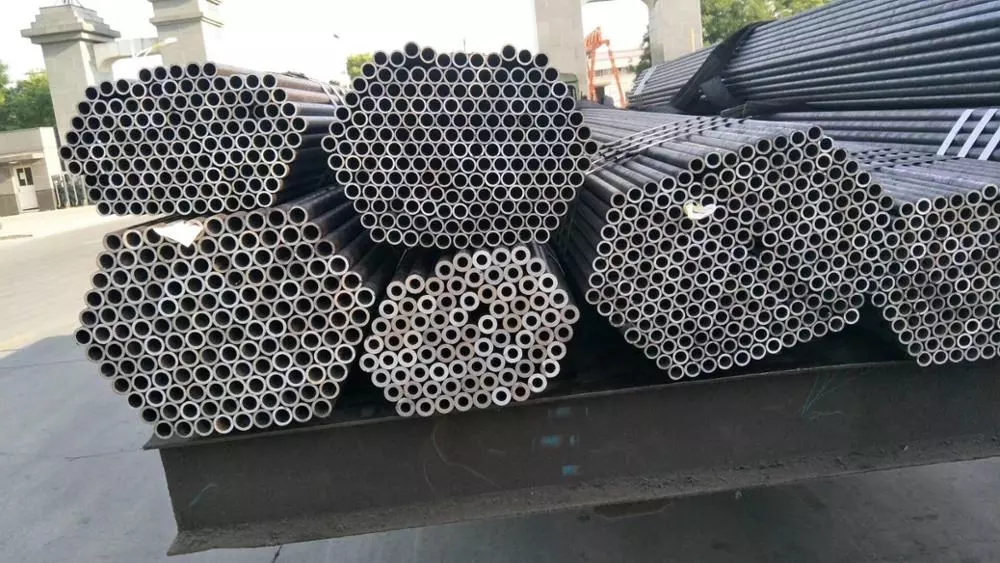

Alloy High Pressure Seamless Steel ASTM A213 Grade T11 T12 Tubing / Pipe

Product Description

ASTM A213(ASME SA213)
Standard Specification for Seamless Ferritic and Austenitic Alloy-Steel oiler, Superheater,and Heat-Exchanger Tubes
Application:
For manufacturing wall panel,economizer,superheater and steam pipeline of boilers
Size(mm): O.D.: 6.0~76.0 W.T.: 1~10 L: max 12000

Grade and Chemical Composition (%)

Grade C Mn P≤ S≤ Si Cr Mo
T11 0.05-0.15 0.30-0.60 0.025 0.025 0.50-1.00 0.50-1.00 1.00-1.50
T12 0.05-0.15 0.30-0.61 0.025 0.025 ≤0.50 0.80-1.25 0.44-0.65
T13 0.05-0.15 0.30-0.60 0.025 0.025 ≤0.50 1.90-2.60 0.87-1.13

Mechanical Properties(MPa):

Grade Tensile Point Yield Point
T11 ≥415 ≥205
T12 ≥415 ≥220
T13 ≥415 ≥205

ASTM A213/ASME SA213 , T11, T12 Tubing / Pipe Tolerance

Outside Diameter OD Tolerance WT Tolerance Ovality Tolerance Cut Length Tolerance
OD≤ 12, 7 mm ± 0, 13 mm ± 15 % – + 3, 18 mm, – 0 mm
12, 7 mm < OD ≤ 38, 1 mm ± 0, 13 mm ± 10 % max, 1, 65 mm + 3, 18 mm, – 0 mm
38, 1 mm < OD ≤ 88, 9 mm ± 0, 25 mm ± 10 % max, 2, 41 mm + 4, 76 mm, – 0 mm

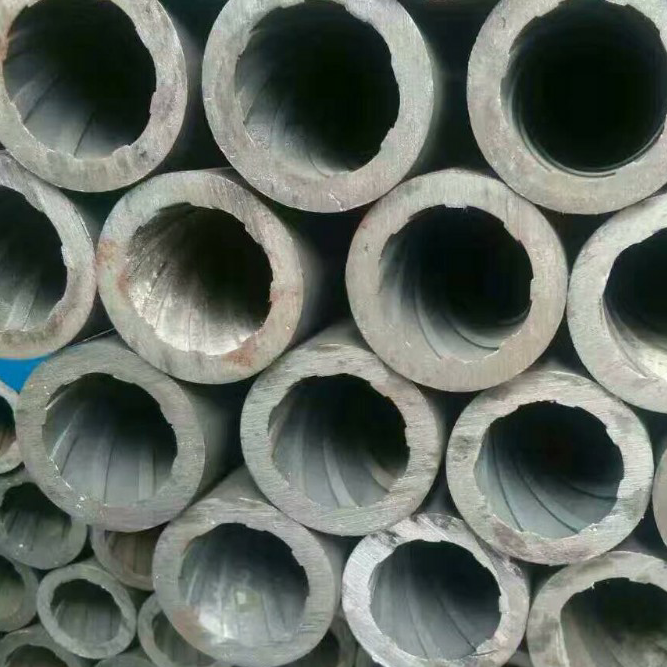

Internally Rifled Boiler tube (82.5MM*12.7MM /14Ribs)

GH2132 Monel K-500 Alloy31 Special Nickel-Based Alloy Stainless Steel Pipe

GH2132 Monel K-500 Alloy31 Special Nickel-Based Alloy Stainless Steel Pipe

GH2132 Monel K-500 Alloy31 Special Nickel-Based Alloy Stainless Steel PipeGH2132 Monel K-500 Alloy31 Special Nickel-Based Alloy Stainless Steel PipeGH2132 Monel K-500 Alloy31 Special Nickel-Based Alloy Stainless Steel PipeGH2132 Monel K-500 Alloy31 Special Nickel-Based Alloy Stainless Steel PipeGH2132 Monel K-500 Alloy31 Special Nickel-Based Alloy Stainless Steel Pipe


Product Tags:

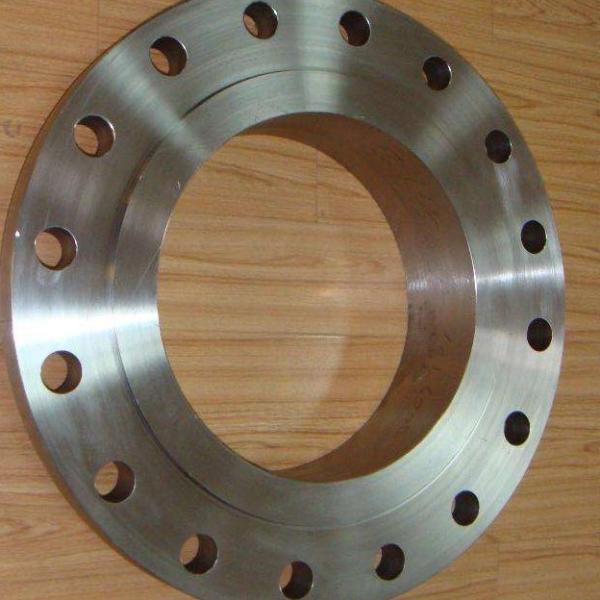

S100-150 Forged Stainless Steel Flange
